Plastic Hinge Barrel Damper For Auto Cosmetic Mirror

Plastic hinge barrel damper are rotary dampers that mount at the hinge-point and are designed to fit into small spaces. A typical application is auto Cosmetic mirror. The design of middle through hole is easy to install. Plastic hinge barrel damper is usually used in auto cosmetic mirror. Damping oil is the imported silicone oil with good heat resistance ABD barrel dampers are the perfect solution for a wide range of applications. Barrel dampers are widely used in automobile interior decoration, small flip plate,small spaces, car grab Handle, door lock handle, car door handle, Jewelry Box, Gift Box, small cover plate slow bounce, small cover plate soft close, etc. Our small cover plate slow bounce can make the movement of structures soft, quiet and safe to mitigate the impact, avoid the damage. ABD barrel dampers are crucial for many products which require safety, high quality and durability solutions. ABD auto cosmetic mirror plastic hinge barrel dampers are easy to install. Once installed, they are increasing equipment life and totally maintenance free.

Welcome to purchase high quality and auto cosmetic mirror plastic hinge barrel dampers from A.B.D. Equipment Co., Ltd. - one of the leading such manufacturers and suppliers. Our products with advantages of excellent quality, competitive price, and best service are your first choice. If you have interest in our auto cosmetic mirror plastic hinge barrel dampers or require any further information, please do not hesitate to contact me.

Specifications

NOTE:

1.Please contact the corresponding product engineer for specific torque products.

2.Max. rotation speed: 50r/min

3.Max. circle rate: 6 cycle/min ( Clockwise180 °, 180 ° anti-clockwise for 1 cycle)

4.Operating temperature: -10~50℃

5.Storage temperature:-30~60℃

Drawings

Materials

Damper Characteristics

Applied torque: (T)

Test Temperature:23+/-5℃

Rotating speed:20r/min

Durability test Method: Clockwise 180 °, 180 ° anti-clockwise

Rotating speed: 20r/min

Test Frequency: 1cycle/min

Test Temperature: 23±5℃

Durability test cycle: 10000cycle

Test result criteria: Store in the room temperature for 24 hours or more after the test, recording to the torque T=T±30%T.

Applications

Automobile interior decoration, small flip plate, small spaces, car grab handle, door lock handle, car door handle,auto car portable ashtray, seat armrest,auto cosmetic mirror,jewelry box, gift box,small cover plate slow bounce, small cover plate soft close, etc.

Caution

1. Do not operate without sufficient mounting strength.

2. Do not operate without an external stopper.
3. Using dampers beyond the specified.
4. Please do not use under the oil or vacuum environment.
5. Do not discard abandoned damper.
6. Radial load to the shaft.
7. Over-tightening of mounting screws.
8. Using dampers beyond the durability.

Our Company

ABD Equipment Co., Ltd. focuses on lean manufacturing of precision components in molding, assembly and quality management. The main products we develop and design include precision motion hinges, damping components, motor gearbox drive components, lock bodies and stop mechanisms for motion control related products.

ABD's products are widely used in household appliances, electrical products, industrial manufacturing, furniture decoration, hutch defends equipment, public facilities, etc.
Our products is conducive to performing structural movement in soft, silent and safe environment, mitigating impact load, avoiding strike damage, prolonging mechanical life, reducing noise disturbance, improving product quality and improve customer satisfaction.

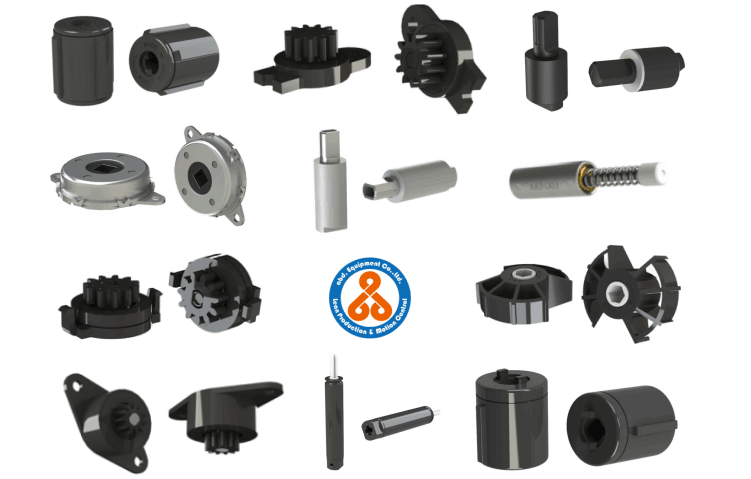

Our products range from barrel damper, vane damper, stop damper, gear damper, disk damper, shaft damper, shock damper, damping gas spring. Feel free to contact us if you are interested in any of the ABD products and services.
